Balboa 5.5KW M7 Heater Assembly With Plug | G7512

SKU: G7512

$27999
Taxes, discounts and shipping calculated at checkout.

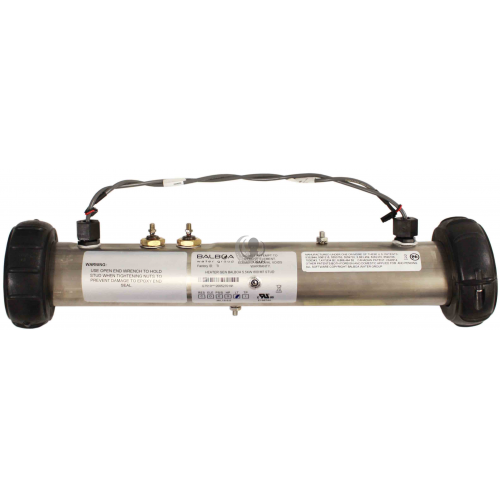

Balboa M7 5.5KW heater assembly with sensors. Includes wires attached to the element terminals with a plug on the end that plugs into the circuit board on the BP7 series and a female wired receptacle on the updated VS series. Balboa has eliminated the copper heater straps and updated the heater connection with wires and a plug. If you are installing this heater in an older Balboa VS or EL series pack with copper heater straps, you will need to remove the copper straps and install heater receptacle cable to the circuit board. Do not remove factory installed plug, this will void the warranty.

Details:

  • Stainless Steel 2" X 15" Heater Assembly
  • 5.5 kw Heater Element, Incoloy
  • 2" Split Nuts and Slip Fittings
  • 2 Sensors (Replaces Balboa 32016)
  • Operates Operates on either 110V or 220V
  • Brand: Balboa
  • Includes 2 x 2" Gaskets



Also replaces:

  • Balboa 58083, Balboa G7510, C2550-0807-TPS, 26-58083-7S-KS, 26-0807-7S-KS, 2-00-0036C, C2550-0807TPS, 58010, 58121, 58209, 58064, 58000, 58123, 58089, 58086, 58105, 46-138-1020, 58016, 55473, 58140, 740-0617, 740-0655, 2-00-0049, 58306 (has BP Heater Cable), 55624 (Has Titanium Element), Master Spas X300713, 58016 (Marquis Spas)


Balboa 5.5KW M7 Heater Assembly With Plug | G7512

$27999

Balboa M7 5.5KW heater assembly with sensors. Includes wires attached to the element terminals with a plug on the end that plugs into the circuit board on the BP7 series and a female wired receptacle on the updated VS series. Balboa has eliminated the copper heater straps and updated the heater connection with wires and a plug. If you are installing this heater in an older Balboa VS or EL series pack with copper heater straps, you will need to remove the copper straps and install heater receptacle cable to the circuit board. Do not remove factory installed plug, this will void the warranty.

Details:

  • Stainless Steel 2" X 15" Heater Assembly
  • 5.5 kw Heater Element, Incoloy
  • 2" Split Nuts and Slip Fittings
  • 2 Sensors (Replaces Balboa 32016)
  • Operates Operates on either 110V or 220V
  • Brand: Balboa
  • Includes 2 x 2" Gaskets



Also replaces:

  • Balboa 58083, Balboa G7510, C2550-0807-TPS, 26-58083-7S-KS, 26-0807-7S-KS, 2-00-0036C, C2550-0807TPS, 58010, 58121, 58209, 58064, 58000, 58123, 58089, 58086, 58105, 46-138-1020, 58016, 55473, 58140, 740-0617, 740-0655, 2-00-0049, 58306 (has BP Heater Cable), 55624 (Has Titanium Element), Master Spas X300713, 58016 (Marquis Spas)
