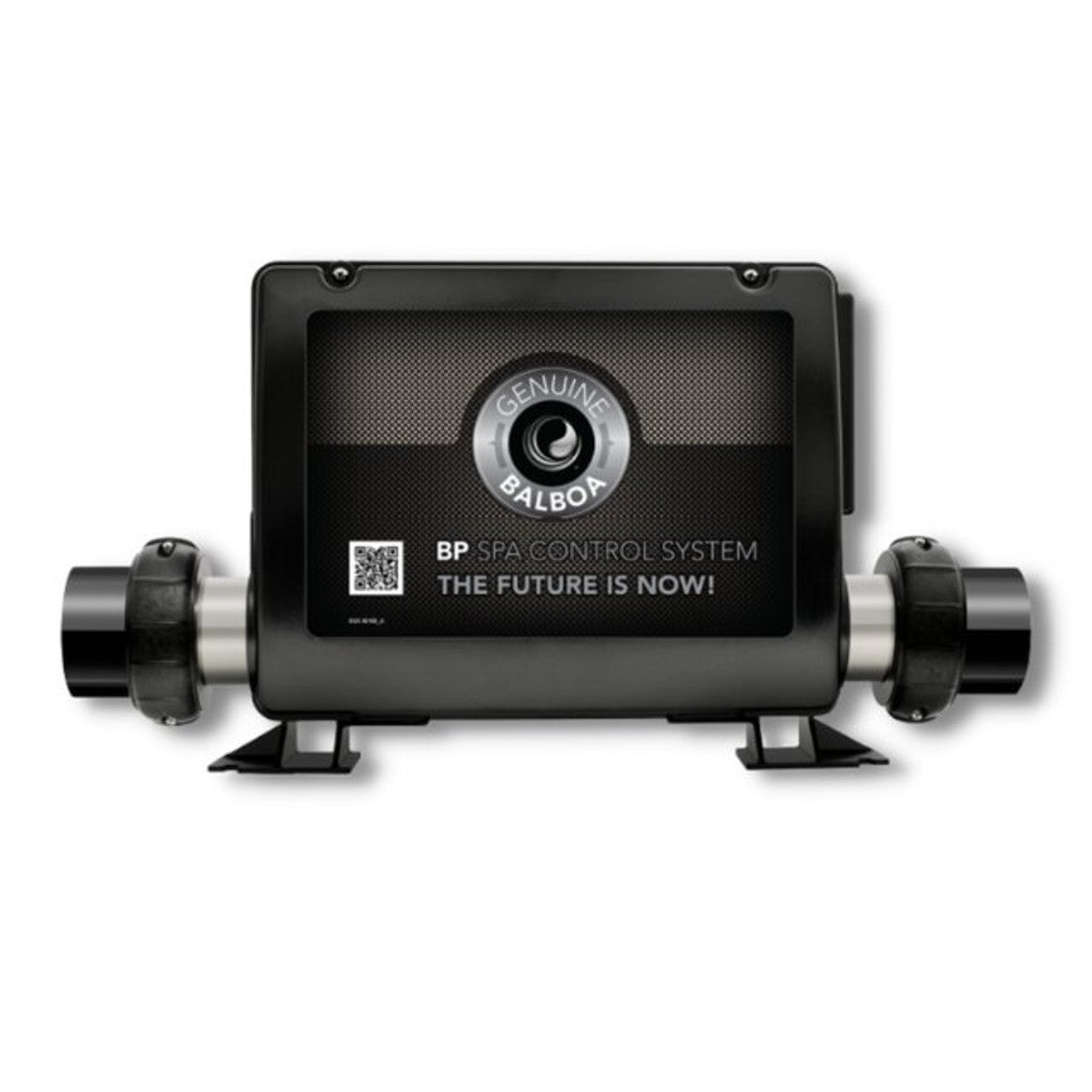

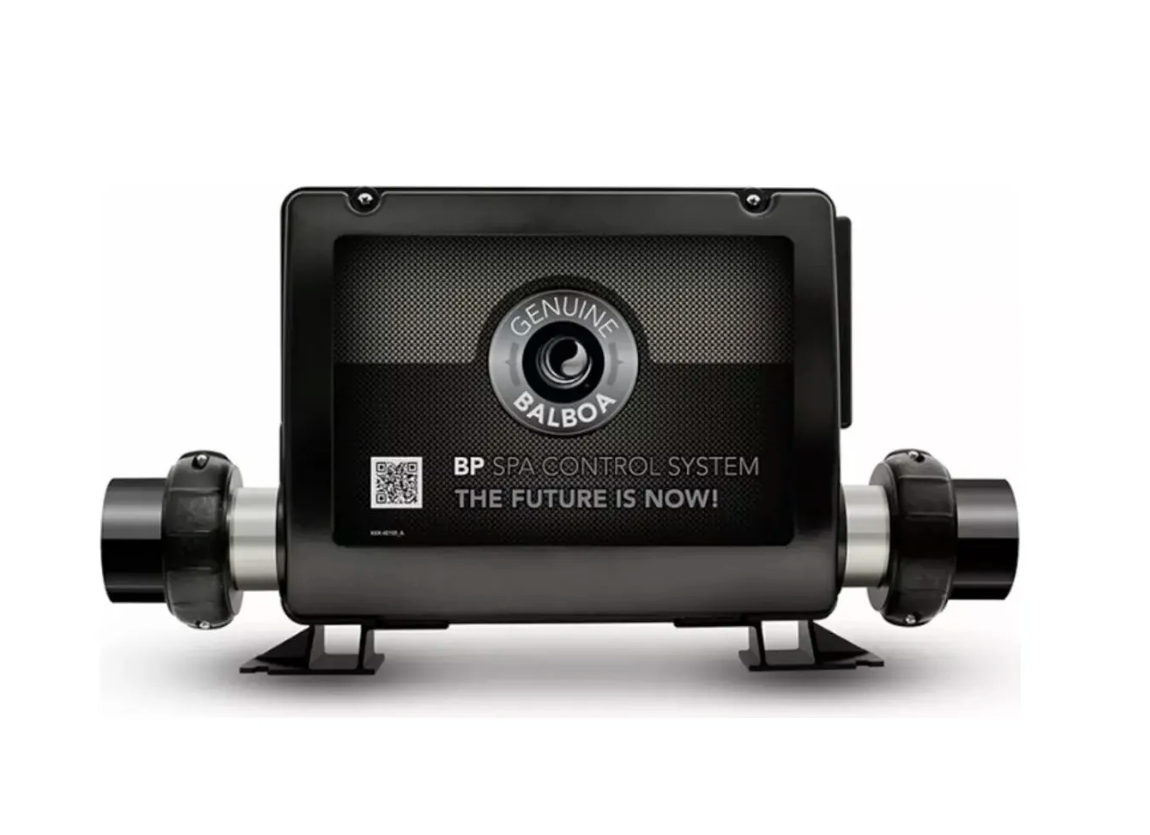

Balboa BP7 Spa Pack - 4KW - G4361

SKU: G4361

$689.99 $799.99


The Balboa BP7 (240v) Spa Pack features a 7-relay system with 32 configurable settings, supporting spas with 1 to 4 pumps, including Microsilk systems. It is adaptable for both 120V and 240V power supplies. This unit requires a minimum flow rate of 23 GPM and operates on 240VAC.

It replaces models 56378-03, 56487-05, 56567, and 56901-01, and is compatible with TP Keypads.

Features:

Control and Configuration

  • 7 Relays: The system features 7 relays, allowing it to operate in up to 32 different configurations.
  • Multi-Pump Support: Capable of powering spas with 1 to 4 pumps, including configurations with one or two-speed pumps and a dedicated circulation pump.
  • M7 Technology: Uses dual M7 temperature and flow sensors for reliable performance and easier installation, as no pressure switch is required.
  • Programmable Settings: Offers extensive programmable settings for filtration cycles, temperature, and other spa functions.

Heating and Components

  • 4kW Heater: Includes a powerful 4kW stainless steel flow-thru heater for efficient water heating.
  • "Plug-n-Click" Connectors: Features easy-to-use connectors for pumps, blowers, ozone generators, and lights, simplifying the installation process.

Connectivity and Smart Features

  • Wi-Fi Compatibility: The system is Wi-Fi ready, allowing users to control the spa remotely via a smartphone app (using the optional Balboa ControlMySpa module, sold separately).
  • Accessory Support: Supports various Balboa accessories, including Chromozon3 (ozone), Balboa Bluetooth Audio, and Status Pro systems.
Specifications:
Feature Specification
Product Type Spa Control System (Spa Pack)
Model Number G4361 (BP7 Series)
Heater Power 4 kW
Heater Type Flow-Thru, Stainless Steel
Voltage Input 240V (Also adaptable for some 120V components)
Max Pumps Supported Up to 4 (various 1 and 2-speed configurations)
Ozone Support Yes (Configurable 120V/240V)
Circulation Pump Optional (Configurable 120V/240V)
Sensor Technology Patented M7 (temperature and flow)
Wi-Fi Capable Yes (with optional ControlMySpa module)
Dimensions (Control Box) Approx. 17" L x 4.75" W x 11.5" H
