Balboa VS100 M7 Hot Tub Heater 4.0kW 240V / 1.0kW 120V – G7414 / 58203

The Balboa VS100 G7414 Hot Tub Heater Assembly is a genuine Balboa replacement flow-through heater designed for compatible Balboa VS100 and GS100 spa control systems. Featuring a compact 10" stainless steel heater tube, dual M7 sensors and a 1-1/2" plumbing connection, it is an ideal replacement when your original VS100 heater has failed, developed a leak or is no longer heating properly.

Operating at 4.0kW on 240V or 1.0kW on 120V, this heater is designed for Balboa systems that use the compact VS100 heater configuration. The stainless steel housing contains an Incoloy flow-through heating element for dependable spa and hot tub heating.

Balboa's M7 technology uses two temperature sensors mounted in the heater assembly to monitor water temperature and conditions within the heater. This eliminates the traditional pressure-switch configuration found on many older spa heating systems.

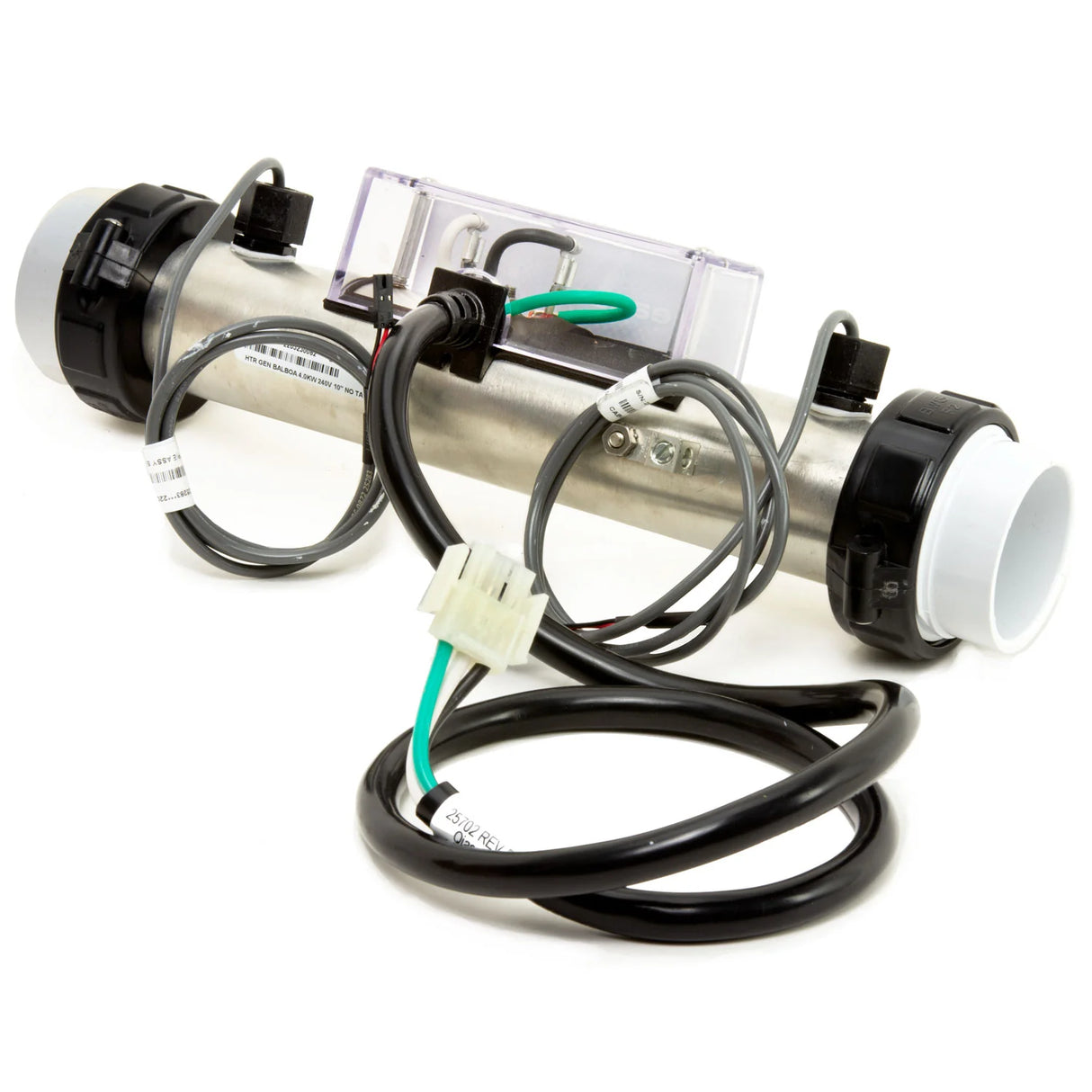

The assembly includes two Balboa M7 sensors with approximately 36" cables, a 34" AMP-style heater power cord, and two 1-1/2" split union nuts, providing the primary components needed when replacing a compatible VS100 heater.

This heater replaces several common Balboa and Hydro-Quip numbers, including 58198, 58203, 58205, 26-0020A, 26-58198-K and 26-58203-K. Always compare the part number, heater dimensions, plumbing size, voltage and electrical connections with your existing heater before ordering.

Features

Genuine Balboa VS100 replacement hot tub and spa heater assembly

4.0kW heating output at 240V

1.0kW heating output at 120V

Balboa M7 dual-sensor technology

Two M7 sensors with approximately 36" cables included

10" stainless steel flow-through heater tube

1-1/2" plumbing connections

Incoloy heating element

Straight heater housing configuration

34" AMP-style heater power cord included

Two 1-1/2" split union nuts included

Designed for compatible Balboa VS100 and GS100 control systems

Direct replacement for multiple older Balboa VS100 heater part numbers

Specifications

Brand: Balboa Water Group

Product Type: Hot Tub / Spa Heater Assembly

Series: VS100

Part Number: G7414 / 58203

Heater Type: Flow-Through

Voltage: 120V / 240V

Wattage: 1.0kW at 120V / 4.0kW at 240V

Heater Tube Length: 10"

Plumbing Connection: 1-1/2"

Housing: Stainless Steel

Element: Incoloy

Sensors: Dual M7 Sensors

Sensor Cable Length: Approximately 36"

Power Cord Length: Approximately 34"

Power Connection: AMP-style connector

Union Nuts: Two 1-1/2" split nuts included

Replaces Part Numbers

58198

58198-01

58203

58203-01

58205

26-0020A

26-58198-K

26-58203-K

G7414

G7414-01

Compatibility

Designed for compatible Balboa VS100 and GS100 hot tub and spa control systems using a 1-1/2" x 10" M7 flow-through heater.

Because Balboa heaters are available in several sizes, wattages and connection configurations, we recommend matching your existing heater's part number, dimensions, voltage, plumbing connections and electrical plug before ordering.

Please Note

Current versions of this heater may not include plumbing tailpieces or O-ring gaskets. The two 1-1/2" split union nuts are included.

FAQs

What does the Balboa G7414 replace?

The G7414 / 58203 VS100 heater replaces several previous Balboa and Hydro-Quip heater numbers, including 58198, 58198-01, 58203-01, 58205, 26-0020A, 26-58198-K and 26-58203-K. Always verify your existing heater before ordering.

How many kilowatts is the Balboa VS100 heater?

The heater is rated at 4.0kW when operated at 240V and 1.0kW when operated at 120V.

What size is the Balboa VS100 heater?

The stainless steel heater tube is approximately 10 inches long and uses 1-1/2" plumbing connections.

Does the G7414 include the M7 sensors?

Yes. The heater assembly includes two M7 sensors with approximately 36" cables.

What is Balboa M7 technology?

Balboa M7 systems use two sensors in the heater assembly to monitor water temperature and conditions within the heater. This sensor-based design is used by compatible Balboa spa control systems instead of relying on a conventional pressure-switch arrangement.

Does this heater include the power cord?

Yes. A heater power cord approximately 34 inches long with an AMP-style connector is included.

Are the heater unions included?

Two 1-1/2" split union nuts are included. Depending on the current production version, plumbing tailpieces and gaskets may need to be purchased separately.
