Balboa VS501Z Circuit Board G1152 | 54357-03 replacement
Balboa VS501Z Circuit Board G1152 | 54357-03 replacement is backordered and will ship as soon as it is back in stock.

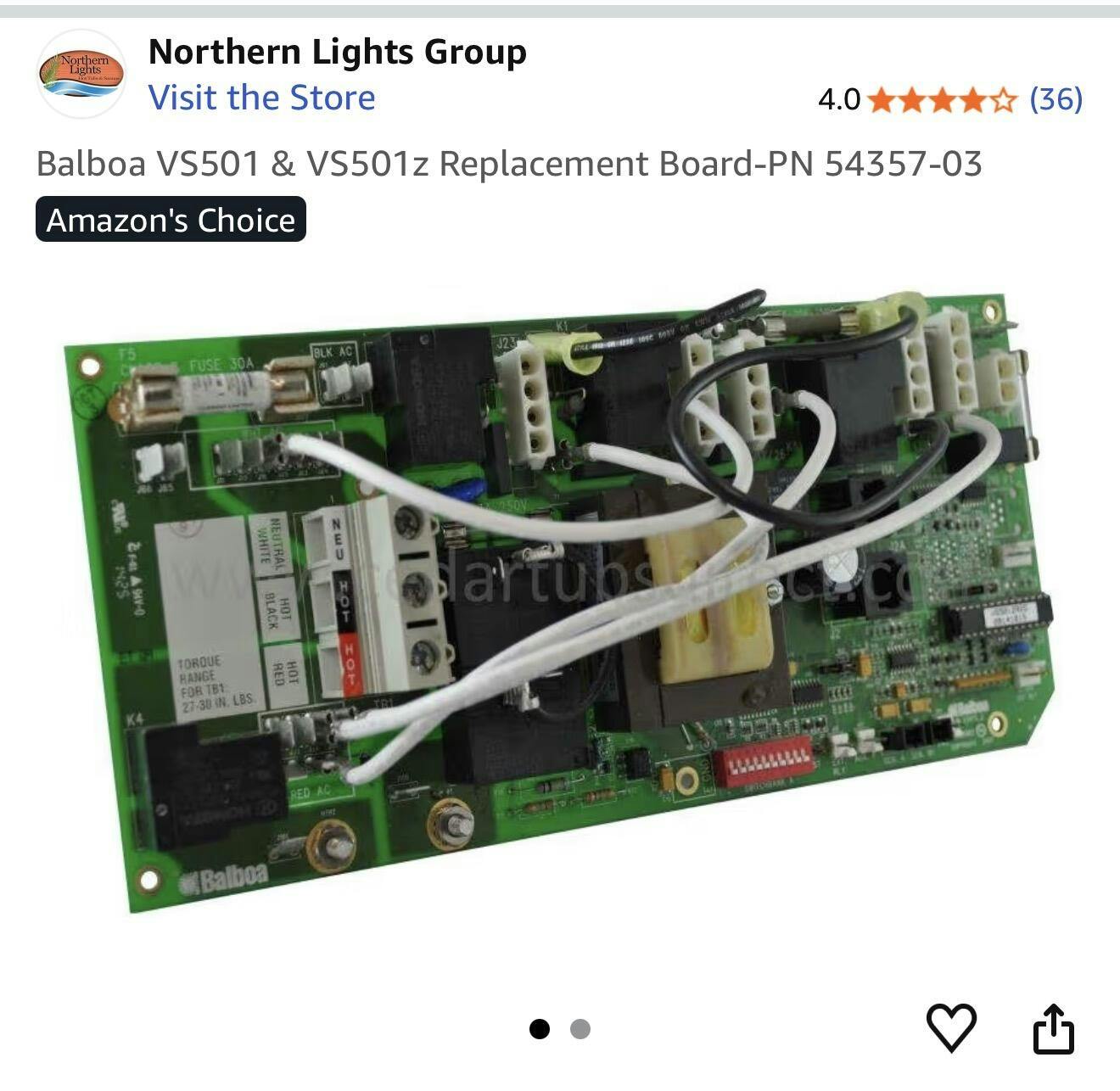

Balboa VS501Z Circuit Board G1152 - replacement for part number 54357-03

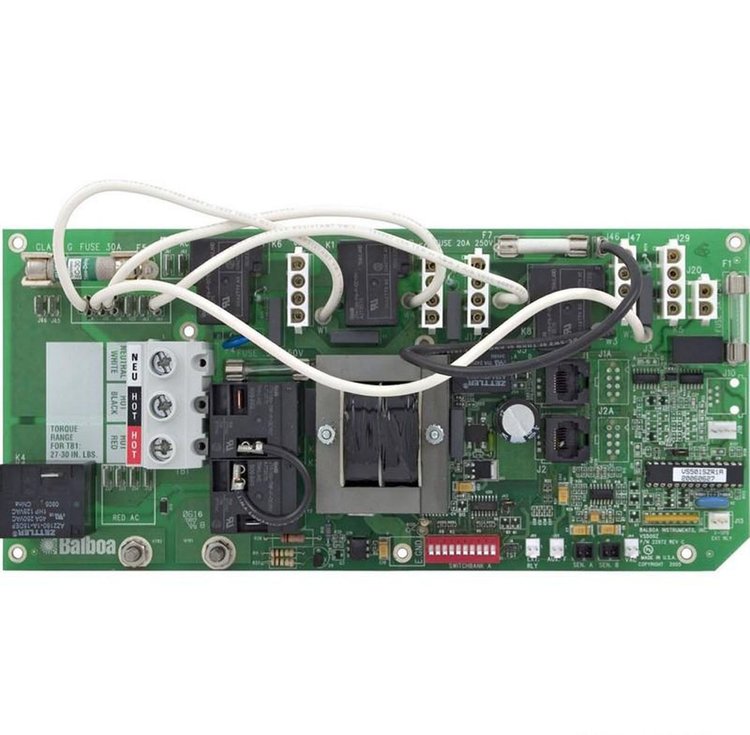

Balboa G1152 VS501Z Hot Tub Circuit Board – Replacement for 54357-03
The Balboa G1152 VS501Z Hot Tub Circuit Board is a genuine Balboa replacement control board for compatible spa systems, including select systems using the Balboa 54357-03 circuit board.
Designed to restore reliable operation of your hot tub, the G1152 controls spa pumps, circulation, ozone, lighting, and other connected equipment. Its configurable software settings allow the board to accommodate a variety of spa equipment configurations.
The Balboa G1152 is a replacement option for the discontinued 54357-03 circuit board, provided the existing system's software, electrical requirements, and equipment configuration are compatible.
Features
-
Genuine Balboa replacement circuit board
-
Replacement for Balboa 54357-03
-
Balboa part number G1152
-
Designed for compatible VS501Z spa control systems
-
Supports single-speed and two-speed pump configurations
-
Optional secondary pump or air blower operation
-
Supports compatible circulation pumps and ozonators
-
12V spa light output
-
Configurable for compatible 115V and 230V systems
-
On-site configuration may be required during installation
Specifications
Brand: Balboa Water Group
Part Number: G1152
Model: VS501Z
Replaces: 54357-03 (compatible configurations)
System Series: Balboa VS
Voltage: 115V / 230V AC
Frequency: 60Hz
Electrical Service: GFCI-Protected
Neutral Required: Yes
Pump 1 Output: 115V / 230V, Single-Speed or Two-Speed, 12A Maximum
Pump 2 Output: Single-Speed Pump or Air Blower, 12A Maximum
Circulation Pump: Optional, Depending on Configuration
Ozonator: Supported
Spa Light Output: 12V
A/V Output: 115V / 230V
Application: Hot Tub and Spa Control System Repair
Replacement Part Numbers
The Balboa G1152 VS501Z circuit board may replace select older boards identified by the following part numbers:
54357-03, 54357, 54604-01, 54369, HQ0022, 33-0032B, KEYS100CR, VS501ZR1, VS501ZR2B
Compatibility depends on the original board's software version, chip number, and equipment configuration. Verify all identifying information before ordering.
Compatibility Information
The Balboa G1152 is designed for compatible hot tubs and spas equipped with VS501Z control systems. It may also replace select older Balboa circuit boards used by various spa manufacturers.
Important: Do not purchase a replacement circuit board based on appearance alone.
Many Balboa circuit boards have similar physical layouts but use different operating chips and software. Boards that look identical may not be interchangeable.
Before ordering, verify the following information from your original circuit board:
Serial Number: Example – 54357-011010060001
Board Description: Example – Board Balboa VS501Z
Chip Number: Example – VS501ZR2D / 2017095
The chip number is typically located on a white label attached to the logic chip near the centre of the circuit board.
Installation Information
The replacement board must be correctly configured for your spa's voltage, pump arrangement, heater, and accessories.
Some older Balboa control systems may require additional components or connection changes when installing updated circuit board versions.
Installation should be performed by a qualified spa service technician.
Frequently Asked Questions
Does the Balboa G1152 replace the 54357-03 circuit board?
Yes, the G1152 is a replacement option for compatible Balboa 54357-03 VS501Z spa control systems. Confirm your original board's software chip and equipment configuration before ordering.
What hot tubs are compatible with the Balboa G1152?
The G1152 is designed for compatible VS501Z spa control systems used by various hot tub manufacturers. Compatibility depends on the original board and spa equipment configuration.
Can the Balboa G1152 operate two pumps?
Yes. Depending on the configuration, the VS501Z can operate a single-speed or two-speed primary pump and a compatible secondary pump or air blower.
Does the Balboa G1152 support 115V and 230V systems?
Yes. The VS501Z supports compatible 115V and 230V electrical configurations. The correct setup depends on the spa equipment and system requirements.
Does the replacement circuit board require programming?
On-site configuration may be required to match the spa's pump setup, voltage, and connected accessories
