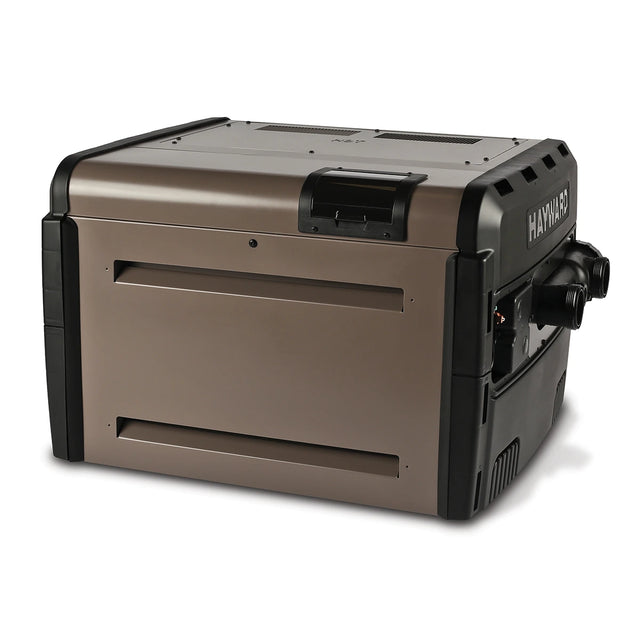

The Universal H-Series is an energy efficient, high performance, installation adaptable commitment to the pool service professional.

W3H150FDN - Natural Gas 150,00 BTU

  • Standard cupro nickel heat exchanger
  • Excellent salt water and chemical corrosion resistance
  • Exclusive "Totally Managed" cupro nickel heat exchanger water flow
  • Same water velocity through all tubes for faster heating
  • Patented header by-pass design
  • Up to 18 percent savings by reducing pump run-time
  • 2in x 2 1/2in CPVC union plumbing connections
  • Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
  • Low NOx emissions - meets clean air quality standards

LITERATURE

Universal H Series Digital Brochure (LITUHSBRO23)(Opens In New Tab)

Universal H Series Brochure (LITUHS22C) Bilingual(Opens In New Tab)

Universal H Series Quick Reference Guide (QRG-UHSe)(Opens In New Tab)

Universal H Series Heaters Troubleshooting Guide (UHS16b)(Opens In New Tab)

UHS Heater How To Guide(Opens In New Tab)

Energy Guide Label (51300052801RevC)(Opens In New Tab)

Cupro Nickel Sell Sheet(Opens In New Tab)

MANUALS

Universal H Series Owner's Manual (1301640701RevG) Bilingual(Opens In New Tab)

Universal H Series Service & Installation Manual (1301623301RevK) Bilingual





      • 83% Efficiency.
      • Standard Cupro Nickel Heat Exchanger - Excellent salt water and chemical corrosion resistance.
      • Exclusive 'Totally Managed' - Same water velocity through all tubes for faster heating.
      • Patented Header By-Pass Design - Up to 18 percent saving by reducing pump run-time.
      • 2" x 2.5" CPVC Union Connections - Common union for installation or service, Adapts to larger plumbing recommended for greater efficiencies.
      • Low NOx Emissions - Meets clean air quality standards.
      • Active Defrost No
        Application New Construction, Renovation, Pool, Aftermarket
        Boost Mode No
        Brand Hayward
        Channel Expert Line
        Circuit Amps 5.5000
        Cooling Capability No
        Fuel Type Propane
        GTIN 610377027298
        Hertz 60 Hz
        Kilowatts 73 kW
        Labor Warranty None
        Low Ambient Operation No
        Master Carton Qty 1
        Maximum Fuse Breaker Size (Amps) 15.0000
        Minimum Circuit Amps 5.5 A
        Pallet Qty 1
        Parts Warranty 3-year
        Phase Heaters 1.0000
        Pool Type In Ground
        Product Dimensions 24 " x 25 " x 29.5 "
        Refrigerant Yes
        Series Heaters Universal HSeries
        Shipping Dimensions 29.3 " x 32 " x 33 "
        Shipping Height 29.3 in
        Shipping Length 33 in
        Shipping Weight 165 lb
        Shipping Width 32 in
        Silent Mode No
        Thermal Efficiency 83 %
