Watkins, Hot Springs Double Barrel Heater W/Sensors | 26-C3160-2S
Watkins, Hot Springs Double Barrel Heater W/Sensors | 26-C3160-2S is backordered and will ship as soon as it is back in stock.

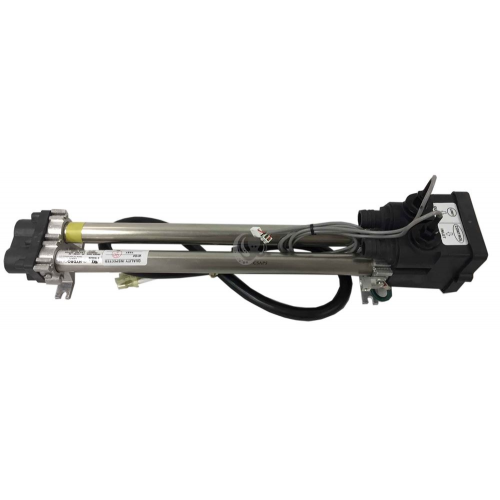

HydroQuip 4kW Double Barrel Hot Tub Heater with Sensors for Watkins Hot Spring | 26-C3160-2S
The HydroQuip 26-C3160-2S 4kW Double Barrel Heater is a premium replacement hot tub heater designed for select Watkins Hot Spring and Tiger River spas. Featuring a durable titanium heating element, dual temperature and high-limit sensors, and automatic power-down reset protection, this low-flow spa heater provides reliable heating performance.
Designed to replace Watkins heater part number 73791, this HydroQuip heater assembly is an excellent replacement for compatible Hot Spring spa heating systems, including select models dating back to 1995.
The double barrel design features a corrosion-resistant titanium heating element, a temperature sensor, and a high-limit safety sensor. Both sensors are pre-installed, helping simplify installation and restore proper hot tub heating operation.
Features
-
4.0kW heating capacity at 240V
-
1.0kW heating capacity at 120V
-
Durable titanium heating element for corrosion resistance
-
Double barrel low-flow heater assembly
-
PDR (Power Down Reset) automatic high-limit protection
-
Includes pre-installed temperature and high-limit sensors
-
Sensor plug adapters included for compatible older control systems
-
3/4-inch barbed inlet and outlet connections
-
Includes power cord with terminated wire connections
-
Drain tube extension kit included
-
Designed for compatible Watkins Hot Spring and Tiger River spas
-
Manufactured by HydroQuip USA
Specifications
Manufacturer: HydroQuip
Part Number: 26-C3160-2S
Heater Type: Double Barrel Low-Flow Spa Heater
Heating Capacity: 4.0kW at 240V / 1.0kW at 120V
Voltage: 120V / 240V
Frequency: 60Hz
Heating Element: Titanium
Safety Protection: Automatic Power Down Reset (PDR)
Temperature Sensor: Included
High-Limit Sensor: Included
Inlet Connection: 3/4-inch Barb
Outlet Connection: 3/4-inch Barb
Built-In Pressure Switch: No
Application: Hot Tub and Spa Heating Systems
Compatible Spa Brands
This replacement heater is designed for select models from the following spa brands:
-
Watkins Hot Spring Spas
-
Tiger River Spas
-
Select compatible Watkins-manufactured spa systems
Compatibility depends on the original heater part number, control system, electrical configuration, and sensor connections. Not all models or production years use the same heater.
Replacement Part Numbers
The HydroQuip 26-C3160-2S is a replacement option for the following heater part numbers:
-
Watkins 73791
-
Watkins 73039
-
HydroQuip C3160-2S
-
HydroQuip C3160-2
-
HydroQuip C3564-2
Important Compatibility Notice
This heater does NOT include a built-in pressure switch and is NOT a direct replacement for Watkins heater part number 76228.
Watkins 76228 requires a heater configuration with a pressure switch. The HydroQuip 26-C3072-2 is the corresponding 4kW pressure-switch heater replacement.
Before ordering, verify your existing heater part number and confirm that your spa uses the correct PDR heater configuration.
Frequently Asked Questions
Will this heater fit my Hot Spring hot tub?
The HydroQuip 26-C3160-2S is compatible with select Watkins Hot Spring spas that use heater part number 73791 or an approved equivalent. Check your existing heater part number before purchasing.
Is this heater compatible with Tiger River spas?
Yes. This 4kW double barrel heater is compatible with select Tiger River hot tubs equipped with the appropriate Watkins heating system.
Does this heater include temperature sensors?
Yes. The heater includes both a temperature sensor and a high-limit safety sensor, pre-installed in the heater assembly.
Does this heater have a pressure switch?
No. This model uses PDR automatic high-limit protection and does not include a built-in pressure switch.
Can I replace Watkins heater 76228 with this model?
No. The 26-C3160-2S is not a direct replacement for Watkins 76228 because it lacks the required built-in pressure switch. Check the HydroQuip 26-C3072-2 for that application.
Can this heater operate on 120V or 240V?
Yes. The heater is rated at 1.0kW on 120V and 4.0kW on 240V when installed in a compatible system.
What are the benefits of a titanium hot tub heater?
Titanium heating elements provide excellent corrosion resistance and durability in spa water environments, helping extend heater service life when water chemistry is properly maintained.
Are sensor adapters included for older Hot Spring spas?
Yes. Sensor plug adapters are included for compatible older Watkins control systems, including certain IQ2000 applications.
Is professional installation recommended?
Yes. Spa heaters involve high-voltage electrical connections and water circulation systems. Installation by a qualified spa technician or electrician is recommended
